UAV Mesh Network Radio MD30Pro FHSS for Emergency Response

Name: UAV Mesh Network Radio MD30Pro FHSS for Emergency Response
Brand: Shenzhen Suntor Technology Co., Ltd.
SKU: MD30Pro
Price: 5,500.00 USD
Availability: InStock

Szczegóły Produktu

Miejsce pochodzenia: Shenzhen

Nazwa handlowa: Suntor

Numer modelu: MD30Pro

Warunki płatności i wysyłki

Uzyskaj najlepszą cenę

Skontaktuj się teraz

Specyfikacje

Opis

Specyfikacje

Podkreślić:
                                                                                                                                                                                                                                                                                                                                                                                                      UAV mesh network radio, FHSS emergency response radio, IP mesh network radio


Zakres częstotliwości:	1300 ~ 1500MHz	Moc nadajnika:	1 W (0,5 W * 2)
System transmisji:	COFDM	Szybkość transmisji danych:	25 Mb/s przy 10 MHz (szczyt)
Wejście wideo:	ETH (HDMI/SDI opcjonalnie)	Skoki sieciowe:	1/2/3/4/10 przeskoków

Zakres częstotliwości:	1300 ~ 1500MHz
Moc nadajnika:	1 W (0,5 W * 2)
System transmisji:	COFDM
Szybkość transmisji danych:	25 Mb/s przy 10 MHz (szczyt)
Wejście wideo:	ETH (HDMI/SDI opcjonalnie)
Skoki sieciowe:	1/2/3/4/10 przeskoków

Opis

UAV Mesh Network Radio MD30Pro FHSS for Emergency Response

MD30Pro Drone Mesh Radio with AES Encryption & 25Mbps Data Rate

The MD30Pro Drone Mesh Radio is a compact, lightweight, and high-performance IP Mesh networking device designed for UAV communication, tactical operations, emergency response, and long-range wireless data transmission. Built with advanced COFDM modulation, AES128/256 encryption, and frequency hopping technology, the MD30Pro delivers stable broadband connectivity in complex environments.

Supporting up to 25Mbps data rate, 30KM air-to-ground transmission, and multi-node self-healing mesh networking, the MD30Pro provides reliable real-time video, telemetry, and IP data transmission for mission-critical applications.

Key Features

Long Range UAV Mesh Communication - Supports up to 30KM air-to-ground wireless transmission distance for stable communication links
High-Speed Broadband Data Transmission - Peak data rate of 25Mbps supports real-time HD video streaming and IP data communication
Advanced IP Mesh Networking - Ad-hoc mesh networking with over 64 IP Mesh nodes that automatically connect and self-organize
AES128/256 Encryption Protection - Secure wireless communication for sensitive video and data transmission
FHSS Frequency Hopping Technology - IFS/FHSS frequency hopping improves anti-interference capability and reliability
Compact and Lightweight Design - Weighing less than 50g, optimized for UAV payload integration

Technical Specifications

Product Model	MD30Pro
Transmission Technology	COFDM
Networking Type	IP Mesh / Ad-Hoc Network
Frequency Range	1350~1450MHz (Customizable)
Data Rate	Up to 25Mbps
RF Power	0.5W * 2
Transmission Distance	Up to 30KM Air-to-Ground
Encryption	AES128 / AES256
Modulation	BPSK/QPSK/16QAM/64QAM
Network Nodes	More Than 64 Nodes
Networking Hops	Up to 10 Hops
Startup Time	5 Seconds
Power Consumption	≤10W Peak
Voltage Input	DC 8~28V

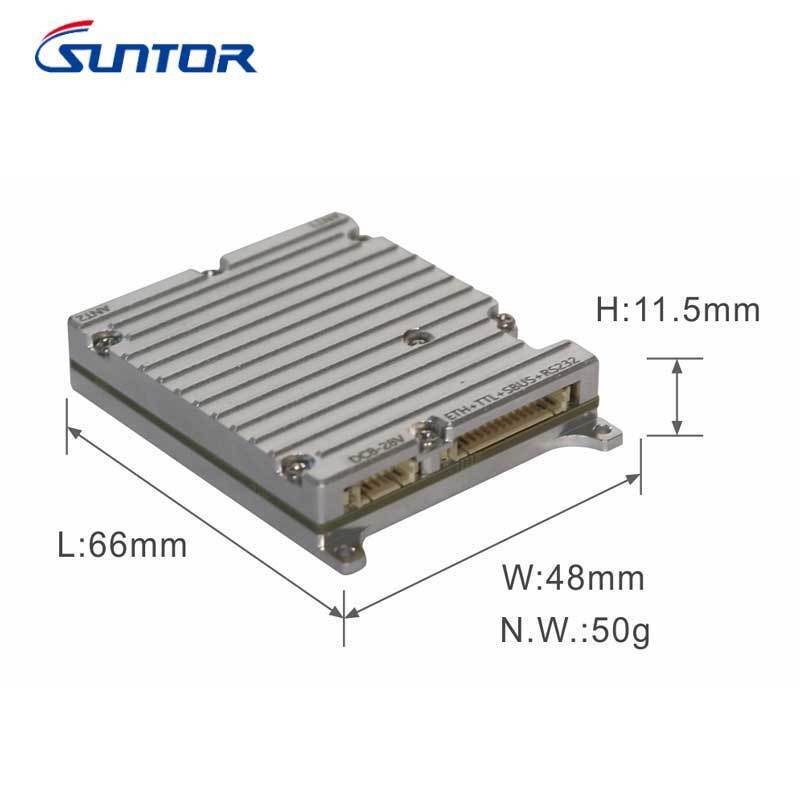

Dimensions	≤66 * 48 * 11.5mm
Weight	≤50g
Operating Temperature	-40°C ~ +55°C

Applications

UAV Video Transmission
Emergency Rescue Communication
Tactical Surveillance Systems
Public Safety Operations
Border Security
Firefighting Communication
Industrial Inspection Drones
Smart City Wireless Networking
Tactical and Defense Communication
Unmanned Ground Vehicle (UGV) Communication

Why Choose MD30Pro UAV Mesh Radio?

The MD30Pro combines long-range transmission, secure mesh networking, and high-speed broadband communication in an ultra-compact form factor. Its advanced self-healing IP Mesh architecture ensures stable communication even in dynamic and infrastructure-less environments. Whether deployed for emergency response, drone video transmission, or tactical communication, the MD30Pro provides reliable and secure wireless connectivity for professional mission-critical applications.
